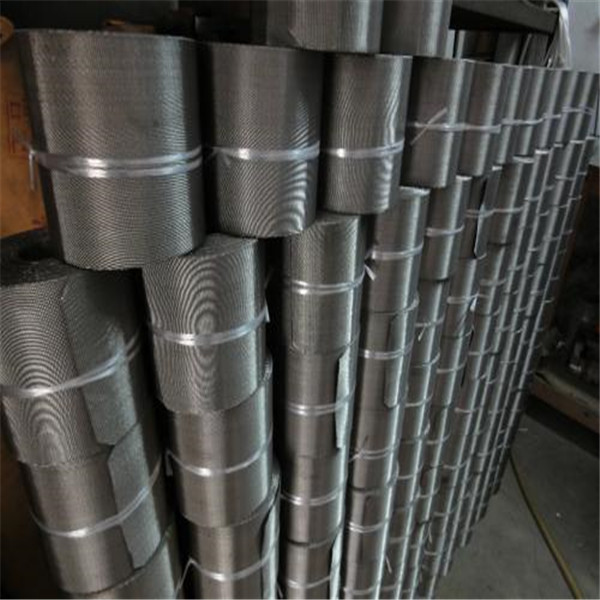

stainless steel reversed dutch weave ribbon filter wire mesh/Reverse Dutch Twill Weave Wire Mesh for screen Changer
There are two Weave types of reverse dutch weave mesh :
- reverse Plain dutch weave mesh
it has more and finer warp wires and fewer and heavier weft wires, giving high stability and good performance - reverse Dutch Weave but Twilled Weave mesh:each weft wire goes through two warp wires alternatively.The Reverse Dutch Twill Weave allows to use wires with larger diameters and gives better stability and strenght to the weft.
| |
| Mesh/inch | Wire Dia.(mm) | Width(mm) | Length/Roll(m) |
| 72/15 | 0.45/0.55 | 97---400 | 10/20 |
| 120/15 | 0.35/0.45 | 97---400 | 10/20 |
| 132/17 | 0.32/0.45 | 97---400 | 10/20 |
| 150/17 | 0.3/0.45 | 97---400 | 10/20 |
| 152/24 | 0.27/04 | 97---400 | 10/20 |
| 170/17 | 0.27/0.45 | 97-400 | 10/20 |
| 180/18 | 0.27/0.45 | 97-400 | 10/20 |
| 200/40 | 0.17/0.27 | 97---400 | 10/20 |
| 260/40 | 0.15/0.25 | 97---400 | 10/20 |
Application of Reverse Dutch Weave Wire Mesh:
used in auto screen changers employed by the extrusion processes of the plastics industry,such as plastic wire drawing bench,wire drawing machine,coating machine,such as plastic bags,plastic film and so on.
screen Catalog:
| Mesh count | Wire diameter(mm) | Thickness(mm) | Width(mm) |
| 54*15 | 0.45*0.6 | 1.75 | 50--800 |
| 72*15 | 0.45*0.55 | 1.7 | 50--800 |
| 132*17 | 0.23*0.45 | 1.2 | 50--1000 |
| 160*18 | 0.28*0.45 | 1.27 | 50--1000 |
| 200*40 | 0.17*0.27 | 0.7 | 50--1500 |
| 260*40 | 0.15*0.27 | 0.65 | 50--1500 |
| 300*40 | 0.13*0.27 | 0.65 | 50--1500 |
| 350*40 | 0.13*0.27 | 0.6 | 50--1500 |
description:
Reverse mesh belt is also known as belt type automatic filter. It is made of high quality and high strength stainless steel wire. It has advanced equipment and exquisite production technology. It has smooth surface, high hardness, continuous net, no deformation, high temperature resistance and corrosion resistance. , flexible mesh and other advantages, with excellent filtration performance.
Packing and shipping of Reverse Dutch Weave Wire Mesh:

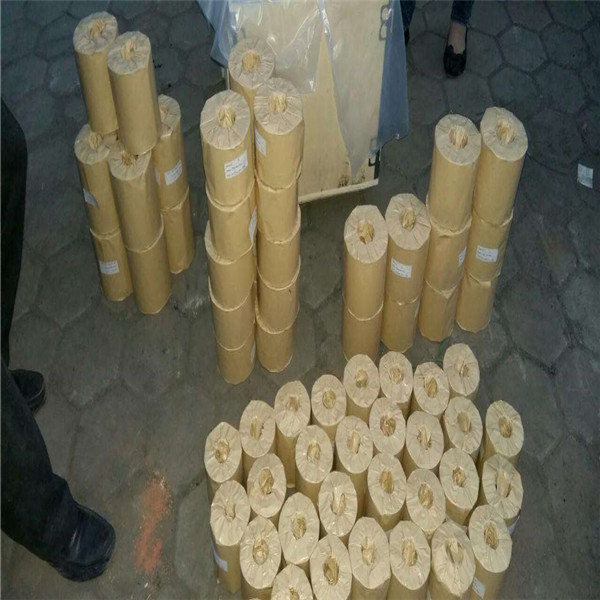

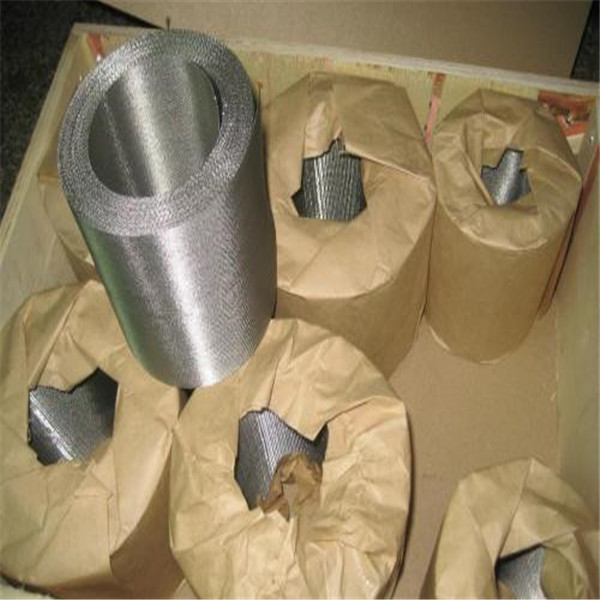

Reverse Dutch Weave Wire Mesh is packed with paper,then in plywood case to make sure its safty when shipping.
Dutch Weave Wire Mesh can be shipped by sea,by air and by express.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: For mass production,T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before delivery.
Q3. What is your terms of delivery?
EXW, FOB, CFR
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or special designs. The mold fee wil be acounted by you.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7: How do you make our business long-term and good relationship?
1).To keep good quality and competitive price is our way to ensure our customers benefit .
2). We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
