Stainless Steel Wire Rope Mesh Net/Flexible Stainless Steel Cable Mesh Netting(knotted &ferrule type)/stainless steel

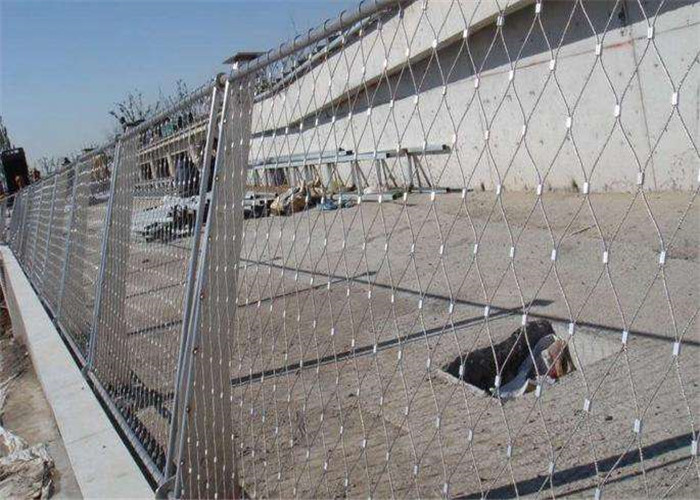

Stainless steel wire rope mesh used for wide range of application: bird net, zoo, greenhouse, airport, farm fencing, decoration in hall, green wall series, stair protection, and so on. It is safe, light weight, long service life, rustless, high-strength, ect. There are three types: weaven type, open ferrule type and seamless sleeves type.
We can infinitely customize to mee your exhibits exact specifications. No matter how large, how small, or how special your sepcimens are, we can assure you their security completely!
Material: SS304,SS304L,SS316,SS316L etc
Type: the SS cable mesh are hand-made from the stainless steel wire rope, there are two types: knotted mesh and ferruled mesh;
Kontted mesh is a kind of plain weave, each wrap wire rope crosses alternately above and below each weft wire rope, warp and weft wire ropes generally have the same diameter.

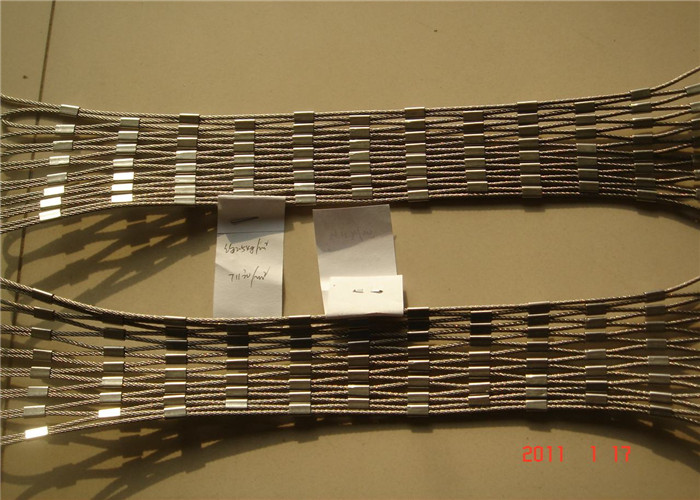

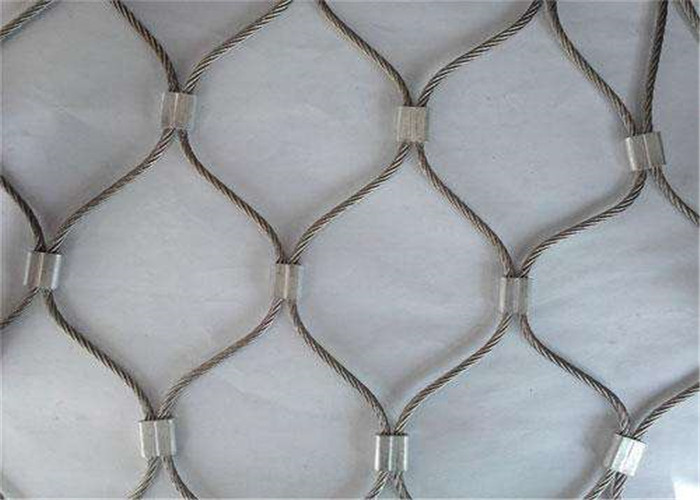

Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
Specification
| Item | Cable construction | Steel wire rope diameter | Mesh opening |
| inch | mm | inch | mm |
| 32120 | 7 x 19 | 1/8 | 3.2 | 4.7 x 4.7 | 120 x 120 |
| 32102 | 7 x 19 | 1/8 | 3.2 | 4 x 4 | 102 x 102 |
| 3290 | 7 x 19 | 1/8 | 3.2 | 3.6 x 3.6 | 90 x 90 |
| 3276 | 7 x 19 | 1/8 | 3.2 | 3 x 3 | 76 x 76 |
| 3251 | 7 x 19 | 1/8 | 3.2 | 2 x 2 | 51 x 51 |
| 24102 | 7 x 7 | 3/32 | 2.4 | 4 x 4 | 102 x 102 |
| 2490 | 7 x 7 | 3/32 | 2.4 | 3.6 x 3.6 | 90 x 90 |
| 2476 | 7 x 7 | 3/32 | 2.4 | 3 x 3 | 76 x 76 |
| 2460 | 7 x 7 | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 |
| 2451 | 7 x 7 | 3/32 | 2.4 | 2 x 2 | 51 x 51 |
| 2076 | 7 x 7 | 5/64 | 2 | 3 x 3 | 76 x 76 |
| 2060 | 7 x 7 | 5/64 | 2 | 2.4 x 2.4 | 60 x 60 |
| 2051 | 7 x 7 | 5/64 | 2 | 2 x 2 | 51 x 51 |
| 2038 | 7 x 7 | 5/64 | 2 | 1.5 x 1.5 | 38 x 38 |
| 1676 | 7 x 7 | 1/16 | 1.6 | 3 x 3 | 76 x 76 |
| 1651 | 7 x 7 | 1/16 | 1.6 | 2 x 2 | 51 x 51 |
| 1638 | 7 x 7 | 1/16 | 1.6 | 1.5 x 1.5 | 38 x 38 |
| 1630 | 7 x 7 | 1/16 | 1.6 | 1.2 x 1.5 | 30 x 30 |
| 1625 | 7 x 7 | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 |
| 1251 | 7 x 7 | 3/64 | 1.2 | 2 x 2 | 51 x 51 |
| 1238 | 7 x 7 | 3/64 | 1.2 | 1.5 x 1.5 | 38 x 38 |
| 1230 | 7 x 7 | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 |
| 1225 | 7 x 7 | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 |
| 1220 | 7 x 7 | 3/64 | 1.2 | 0.8 x 0.8 | 20x 20 |
Application

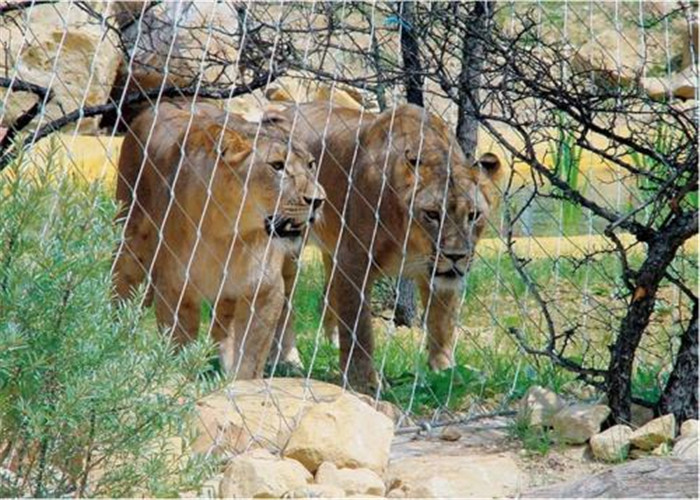

As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. For the weave opening, we can infinitely customizable to meet your exhibits exact specifications and we assure their complete security.
Flexible stainless steel rope
mesh, inter-woven type in particular, is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
Specification:
| Flexible Stainless Steel Cable Mesh(Inter-woven Type) |
| Item No.s | Cable Diameter | Mesh Opening Size | Normal Break |
| | inch | mm | inch | mm | lbs. |
| XT-3212W | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1,600 |
| XT-3210W | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1,600 |
| XT-3290W | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1,600 |
| XT-3276W | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1,600 |
| XT-3250W | 1/8 | 3.2 | 2 x 2 | 51 x 51 | 1,600 |
| XT-2410W | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| XT-2490W | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| XT-2476W | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| XT-2460W | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| XT-2450W | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| XT-2076W | 5/64 | 2.0 | 3 x 3 | 76 x 76 | 676 |
| XT-2060W | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 | 676 |
| XT-2050W | 5/64 | 2.0 | 2 x 2 | 51 x 51 | 676 |
| XT-2038W | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| XT-1676W | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| XT-1650W | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| XT-1638W | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| XT-1630W | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| XT-1625W | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| XT-1238W | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| XT-1230W | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| XT-1225W | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
| XT-1220W | 3/64 | 1.2 | 4/5 X 4/5 | 20 x 20 | 270 |
| Flexible Stainless Steel Cable Mesh(Ferrule Type) |
| Item No.s | Cable Diameter | Mesh Opening Size(W×H) | Normal Break |
| | inch | mm | inch | mm | lbs. |
| XT-3212F | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1,600 |
| XT-3210F | 1/8 | 3.2 | 4 x 6.9 | 102 x 176.7 | 1,600 |
| XT-3211F | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1,600 |
| XT-3212F | 1/8 | 3.2 | 3 x5.2 | 76 x 131.6 | 1,600 |
| XT-3213F | 1/8 | 3.2 | 2 x3.46 | 51 x88.3 | 1,600 |
| XT-3214F | 3/32 | 2.4 | 4x6.9 | 102x176.7 | 920 |
| XT-3215F | 3/32 | 2.4 | 3.55x6.15 | 90x 156 | 920 |
| XT-3216F | 3/32 | 2.4 | 3 x 5.2 | 76x 131.6 | 920 |
| XT-3217F | 3/32 | 2.4 | 2.4x 4.16 | 60x 104 | 920 |
| XT-3218F | 3/32 | 2.4 | 2x3.46 | 51 x 88.3 | 920 |
| XT-3219F | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
| XT-3220F | 5/64 | 2.0 | 2.4x 4.16 | 60 x 104 | 676 |
| XT-3221F | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
| XT-3222F | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 | 676 |
| XT-3223F | 1/16 | 1.6 | 1.2 x2.08 | 76 x 131.6 | 480 |
| XT-3224F | 1/16 | 1.6 | 2x 3.46 | 51 x 88.3 | 480 |
| XT-3225F | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 | 480 |
| XT-3226F | 1/16 | 1.6 | 1.2x2.08 | 30 x 52 | 480 |
| XT-3227F | 1/16 | 1.6 | 1 x 1.73 | 25.4 x 44 | 480 |
| XT-3228F | 3/64 | 1.2 | 1-1/2x2.6 | 38 x 65.8 | 270 |
| XT-3229F | 3/64 | 1.2 | 1.2 x 2.08 | 30 x 52 | 270 |
| XT-3230F | 3/64 | 1.2 | 1 x 1.73 | 25.4 x 44 | 270 |
| XT-3231F | 3/64 | 1.2 | 4/5 x 1.39 | 20 x 34.6 | 270 |
Packing
* We accept custom package,please contact us if you want custom package.
* It will be packing in Wooden box or Carton box based on the weight.
