metal flexible wire zoo netting mesh/cable rope metal/304 316 woven cable mesh/rope with ferrules
Material: stainless steel type 304, 304L, 316, 316L
Structure: 7x7 and 7x19

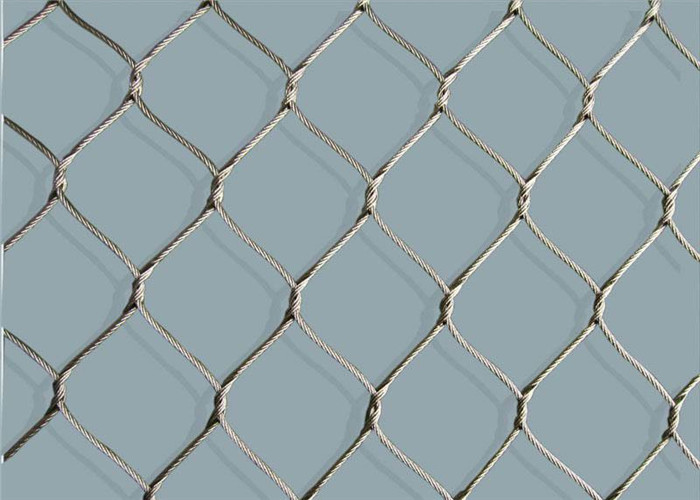

The stainless steel wire rope mesh are hand-made from the stainless steel wire rope,
there are two types: knotted mesh and ferruled mesh.
1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.
2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.
| Stainless Steel Zoo Mesh (ferruled mesh) |
| Wire Rope Construction | Min.Breaking load (KN) | Wire Rope Diameter | Aperture |
| Inch | mm | Inch | mm |
| 7x19 | 7.38 | 1/8 | 3.2 | 4'' x 4'' | 102 x 102 |
| 7x19 | 7.38 | 1/8 | 3.2 | 3'' x 3'' | 76 x 76 |
| 7x19 | 7.38 | 1/8 | 3.2 | 2'' x 2'' | 51 x 51 |
| 7x7 | 4.18 | 3/32 | 2.4 | 4'' x 4'' | 102 x 102 |
| 7x7 | 4.18 | 3/32 | 2.4 | 3'' x 3'' | 76 x 76 |
| 7x7 | 4.18 | 3/32 | 2.4 | 2'' x 2'' | 51 x 51 |
| 7x7 | 3.17 | 5/64 | 2.0 | 3'' x 3'' | 76 x 76 |
| 7x7 | 3.17 | 5/64 | 2.0 | 2'' x 2'' | 51 x 51 |
| 7x7 | 3.17 | 5/64 | 2.0 | 1.5'' x 1.5'' | 38 x 38 |
| 7x7 | 2.17 | 1/16 | 1.6 | 3'' x 3'' | 76 x 76 |
| 7x7 | 2.17 | 1/16 | 1.6 | 2'' x 2'' | 51 x 51 |
| 7x7 | 2.17 | 1/16 | 1.6 | 1.5'' x 1.5'' | 38 x 38 |
| 7x7 | 2.17 | 1/16 | 1.6 | 1'' x 1'' | 25.4 x 25.4 |
| 7x7 | 1.22 | 3/64 | 1.2 | 2'' x 2'' | 51 x 51 |
| 7x7 | 1.22 | 3/64 | 1.2 | 1.5'' x 1.5'' | 38 x 38 |
| 7x7 | 1.22 | 3/64 | 1.2 | 1'' x 1'' | 25.4 x 25.4 |
| 7x7 | 1.22 | 3/64 | 1.2 | 4/5'' x 4/5'' | 20 x 20 |
There are two types, one is woven types of steel cable mesh,the other is ferrule types of steel cable mesh.
The woven types of steel cable mesh mateiral:stainless steel 304, 304L,316,316L.The structure of the steel calbe wire have 7x7 and 7x19. The steel cable wire diameter icludes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 1" x 1", 1-1/2" x 1-1/2", 2" x 2", 3" x 3" and 4" x 4".
The ferrule types of steel cable mesh mateiral:stainless steel 304, 304L,316,316L.The structure of the steel calbe wire have 7x7 and 7x19. The steel cable wire diameter icludes 1/8", 3/32", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
Rope material: high quality stainless steel 304, 316, 304L and 316L.
Rope diameter: 1.2mm to 3.2mm, and other rope diameters are also available.
Rope construction: 7 × 7 and 7 × 19 are the main used, and 1 × 7 and 1 × 19 are also supplied.
Application
The applications for this stainless steel mesh are accordingly verydiverse, both indoors and outdoors. Amongst other applications,it is used for balustrade in-fills, horizontal or vertical fall protection,dividers, façade cladding, green walls and versatile design elements.Complex zoolutions, such as lightweight, three-dimensional free-flight aviaries or big cat enclosures.
Packing
- We accept custom package,please contact us if you want custom package.
- It will be packing in Wooden box or Carton box based on the weight.
