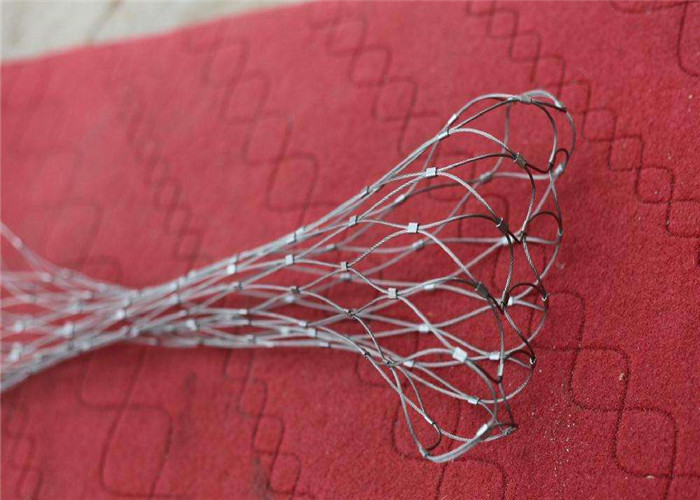

small hole 50*50mm zoo netting carbon rope zoo mesh/wire mesh rope mesh with SS 316 material
1.Material: AISI304/316/304L/316L,etc.
2.Ferrule material: Tinnes copper, Nickel plated copper, stainless steel, etc.
3.Cable dia: 1.20-5.0mm
4.Cable construction: 7*7(1.2--2.5mm), 7*19(3.0--4.0mm).
5.Opening Width(OW): 20--200mm, Opening Hight(OH): 35--346mm
Characteristics of stainless steel ferrule cable mesh:
(1)Light, high strength, forever anti-rust, soft, strong buffering power, fatigue resistance, impact resistance, highly broken force, stable and durable. Easy installation, suitable for any environment.
(2)Close to the nature, green mesh, protect the feathers and skin of birds and other animals from others’ bite and hurt, which supply them a safe and homelike environment to live.
(3)Good visibility, luxry, new style and unique texture, which supply the nearest way to enjoy the sight of view.
Main Specifications:
| stainless steel wire rope mesh-zoo mesh specifications |
| NO | structure | breaking force ( KN ) | wire diameter(MM) | opening (MM) |
| RX32115 | 7 X 19 | 7.38 | 3.2 | 115 X 115 |
| RX3290 | 7 x 19 | 7.38 | 3.2 | 90 x 90 |
| RX24102 | 7 x 7 | 4.18 | 2.4 | 102 x 102 |
| RX2490 | 7 x 7 | 4.18 | 2.4 | 90 x 90 |
| RX2476 | 7 x 7 | 4.18 | 2.4 | 76 x 76 |
| RX2451 | 7 x 7 | 4.18 | 2.4 | 51 x 51 |
| RX2078 | 7 x 7 | 3.17 | 2 | 78 x 78 |
| RX2066 | 7 x 7 | 3.17 | 2 | 66 x 66 |
| RX2051 | 7 x 7 | 3.17 | 2 | 51 x 51 |
| RX2038 | 7 x 7 | 3.17 | 2 | 38 x 38 |
| RX1676 | 7 x 7 | 2.17 | 1.6 | 76 x 76 |
| RX1651 | 7 x 7 | 2.17 | 1.6 | 51 x 51 |
| RX1638 | 7 x 7 | 2.17 | 1.6 | 38 x 38 |
| RX1531 | 7 x 7 | 2 | 1.5 | 31x 31 |
Usage: zoo, wildlife park, marine park and other animal cages, bird netting, animal fences, garden decoration, and construction. Besides, the stainless steel mesh also used for the sports, acrobatism, house decration, and construction decoration etc.
Mark: This steel rope netting owns good toughness, it can be spread out and back, as this mesh is woven, it will keep the aperture side size stable no matter how it will be pulled, so it keeps the holes same with each other.
| cable diameter | mesh opening size | norninal break |
| inch | mm | inch | mm | lbs. |
| 1/8 | 3.2 | 4.75x4.75 | 120x120 | 1600 |
| 1/8 | 3.2 | 4x4 | 102x102 | 1600 |
| 1/8 | 3.2 | 3.55x3.55 | 90x90 | 1600 |
| 1/8 | 3.2 | 3x3 | 76x76 | 1600 |
| 1/8 | 3.2 | 2x2 | 51x51 | 1600 |
| 3/32 | 2.4 | 4x4 | 102x102 | 920 |
| 3/32 | 2.4 | 3.55x3.55 | 90x90 | 920 |
| 3/32 | 2.4 | 3x3 | 76x76 | 920 |
| 3/32 | 2.4 | 2.4x2.4 | 60x60 | 920 |
| 3/32 | 2.4 | 2x2 | 51x51 | 920 |
| 5/64 | 2.0 | 3x3 | 76x76 | 676 |
| 5/64 | 2.0 | 2.4x2.4 | 60x60 | 676 |
| 5/64 | 2.0 | 2x2 | 51x51 | 676 |
| 5/64 | 2.0 | 1-1/2x 1-1/2 | 38x38 | 676 |
| 1/16 | 1.6 | 3x3 | 76x76 | 480 |
| 1/16 | 1.6 | 2x2 | 51x51 | 480 |
| 1/16 | 1.6 | 1-1/2x 1-1/2 | 38x38 | 480 |
| 1/16 | 1.6 | 1.2x1.2 | 30x30 | 480 |
| 1/16 | 1.6 | 1x1 | 25.4x25.4 | 480 |
| 3/64 | 1.2 | 1-1/2x 1-1/2 | 38x38 | 270 |
| 3/64 | 1.2 | 1.2x1.2 | 30x30 | 270 |
| 3/64 | 1.2 | 1x1 | 25.4x25.4 | 270 |
| 3/64 | 1.2 | 4/5x4/5 | 20x20 | 270 |
Our Delivering and Packing
1.About the DELIVERY: shipment to be made within 3-19 days after receiving your order
confirmation and payment.
2.As PACKING: we package the goods with plastic foam for inner packing and wooden cases
for outer packing.
3.If your order more than 50 square meters, we can offer you a good discount, but we also accept small order and trial order.
